Release locks through the LRS Locks table

Available with Location Referencing license.

The LRS Locks table allows you to view and release line, route, and event locks. You can view existing Location Referencing locks, acquire new locks, and release existing locks.

Tip:

You can also release locks with the Release Locks tool.

The easiest way to differentiate between the lock types is to look at the contents of the Event column. If a cell in the Event column contains a value, the lock is an event lock. If a cell in the Event column is blank, the lock is a route lock.

The following is an example of event and route locks in the LRS Locks table:

LRS Locks table, Event column
You can identify lock types in the LRS Locks table by user.

The LRS Locks table contains route, line, and event locks. The cell in the Event column is populated in point 2 above, so it is an event lock. The cell in the Event column is blank in point 1 above, so it is a route or line lock.

Tools available in the LRS Locks table

The following table describes the tools available in the LRS Locks table:

ToolTool nameTool description

Selection

Select All

Select All

Selects all the records in the LRS Locks table and shows the selection on the map.

Zoom To Selection

Zoom To

Zooms to the routes associated with the highlighted locks on the map.

Switch Selection

Switch Selection

Switches the selected rows.

Clear Selection

Clear Selection

Clears any selected rows in the table.

Copy

Copy Selection

Copies the selected rows.

Release locks

Release selected locks

Release selected locks

Releases the locks from the selected rows. This tool is enabled only when all the selected rows have their releasable status values set to Yes.

Learn more about releasing locks

Release all

Release all releasable locks

Releases all the locks whose releasable status value is Yes. There is no need to select rows.

Release highlighted locks

Release highlighted locks

Releases the locks from the highlighted rows. This tool is enabled only when all the highlighted rows have their releasable status values set to Yes.

Learn more about releasing locks

Highlighted

Unselect Highlighted

Unselect Highlighted

Removes the highlighted rows from the current selection set.

Reselect Highlighted

Reselect Highlighted

Updates the current selection set to highlighted rows (only).

Switch Highlighted

Switch Highlighted

Switches the highlighted rows.

Clear Highlighted

Clear Highlighted

Deselects the currently highlighted rows.

Right-click the row

Flash

Flash

Flashes the route on the map.

Zoom To Selection

Zoom To Selection

Zooms to the route on the map.

Pan To Selection

Pan To Selection

Pans (center) to the route on the map.

Select/Unselect

Select/Unselect

Selects or unselects the row in the table and on the map.

Highlight/Unhighlight

Highlight/Unhighlight

Highlights or unhighlights the row in the table and on the map.

Pop-up

Pop-up

Shows the attributes for the route on the map.

Impact of the user and version on releasable status

The releasable status reported in the LRS Locks table is dependent on the user signed in and database version being edited.

The following is an example of the LRS Locks table with user22 signed in using Version2.

LRS Locks table with user22
The LRS Locks table is shown with user22 signed in using Version2.

1

The locks were acquired by user22 using Version2, and their edits were saved, resulting in a releasable status value of On Post.

2

The locks were acquired by user22 using Version2, and they didn't save any edits, resulting in a releasable status value of Yes.

3

The locks were acquired by user11 using Version1, and the signed-in user (user22) didn't acquire the lock, resulting in a releasable status value of No.

The following is an example of the LRS Locks table with user11 signed in using Version1:

LRS Locks table with user11
The LRS Locks table is shown with user11 signed in using Version1.

1

The lock was acquired by user11 using Version1, and they didn't save any edits, resulting in a releasable status value of Yes.

2

The locks were acquired by user22 using Version2, and the user signed in (user11) didn't acquire the locks, resulting in a releasable status value of No.

Release locks

You can release locks in the LRS Locks table if the Releasable column is Yes.

The following table describes the releasable status values:

Releasable statusReason

Yes

The lock is owned by the user who is signed in (in any version), and the route or event has not been edited.

On Post

The lock is owned by the user who is signed in (in any version), and the route or event has been edited.

No

The lock is owned by another user.

Perform the following steps to release locks through the LRS Locks table:

  1. Start ArcGIS Pro and open a project with an LRS Network from a conflict prevention-enabled LRS.
  2. On the Location Referencing tab, click LRS Locks table LRS Locks table to open the table.
  3. Optionally, filter the locks in the LRS Locks table using the available filters for the Network, User, Version, Event, and Line columns.

    The filters can be used individually or in combination to show only those locks that meet these conditions. Complete the following substeps to filter the LRS Locks table:

    1. Choose filter values in the drop-down menus as necessary.

      The filter values you choose are highlighted in blue, indicating they have not been applied.

      LRS Locks table with filtering
      A blue cell in the filter shows that the filter is not yet applied.
    2. Click Apply.

      The LRS Locks table is filtered based on the filter values.

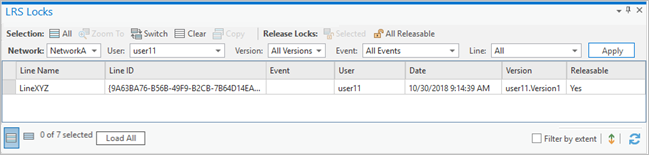

      LRS Locks table after the filter is applied
      The cell is no longer blue after the filter is applied.

  4. Do one of the following to release locks:
    1. To release one lock, select a row with the releasable status value of Yes and click Release Selected Locks Release selected locks.
    2. To release all locks with the releasable status value of Yes without selecting any rows, click All Releasable Release all.
